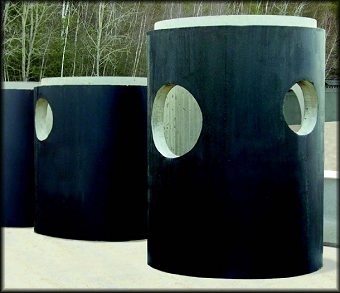

Manholes and Catch Basins
|
|
|||||||||
|
Diameters Include:
|
|||||||||
|
Four-foot through twelve-foot diameter manholes available
|
|||||||||
|
Base Designs Available:
|
|||||||||
|
· Standard Base
· Extended Base · Drop Over Base (doghouse) · Sump |
|||||||||
|
Manhole Tops Available:
|
|||||||||
|
· Standard Flat Tops (with 24" and 30" round or square openings, on or off center)
· Cone Tops (three-foot in height with 24" and 30" openings and four-foot in height with 24" openings) · Specialty Tops (available per specifications and made to order) |
|||||||||
|
Specifications:
|
|||||||||
|
· Manufactured to meet 4,000 psi concrete (or greater based on the job specifications)
· Meets ASTM C478 Standard Specifications · Standard manholes and catch basins designed and manufactured to meet HS25-44 load specification (We can also manufacture manholes to meet Cooper E-80 loading for railroads and airport loading for 727 Aircraft) |
|||||||||
|
Accessories Available as per Job Specifications:
|
|||||||||
|
· Polypropylene Steps
· Butyl rubber joints between manhole sections · Flexible Sleeves, A-Lok Connections and Z-Lok Connections for pipe connections · Asphalt Coating on outside of manhole sections · Access hatches to allow entry into wet wells or pump stations · Access ladders to allow entry into wet wells or pump stations |
|||||||||
|
Drawing Submittals Available:
|
|||||||||
|
· Clock drawings
· Shop drawings · Accessory specifications sheets · Design Calculations (when required) · Buoyancy Calculations (when required) |
|||||||||
|
Sample Drawings
|
